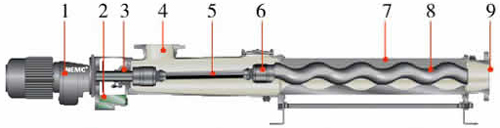

1: Motor (reduction motor) 2: Direct connection bracket 3: Drive shaft 4: Suction port 5: Connecting rod 6:Universal joint 7:Stator 8:Rotor 9: Excreted from the body
Features of screw pump: 1. The spiral sealing line formed by the contact between the stator and the rotor completely separates the suction chamber and the discharge chamber (pressure chamber), making the pump have the isolation function of a valve.2. Multi-phase mixed transport of liquid, gas and solid can be realized.
3. Compared with other types of pumps, it has a higher suction capacity (up to 8.5 meters).4. The volume of the fluid in the pump does not change when it flows, and there is no turbulence, agitation and pulsation.
5. The volume cavity formed by the elastic stator can effectively reduce the wear when transporting media containing solid particles.6. The viscosity of the conveying medium can reach 50,000mPas, and the solid content can reach 40%.
7. The flow rate is proportional to the rotation speed. The flow rate can be adjusted with the help of the speed regulator.8. It can realize constant voltage control and anti-dry operation protection.
1: Motor (reduction motor) 2: Direct connection bracket 3: Drive shaft 4: Suction port 5: Connecting rod 6:Universal joint 7:Stator 8:Rotor 9: Excreted from the body
Features of screw pump: 1. The spiral sealing line formed by the contact between the stator and the rotor completely separates the suction chamber and the discharge chamber (pressure chamber), making the pump have the isolation function of a valve.2. Multi-phase mixed transport of liquid, gas and solid can be realized.
3. Compared with other types of pumps, it has a higher suction capacity (up to 8.5 meters).4. The volume of the fluid in the pump does not change when it flows, and there is no turbulence, agitation and pulsation.
5. The volume cavity formed by the elastic stator can effectively reduce the wear when transporting media containing solid particles.6. The viscosity of the conveying medium can reach 50,000mPas, and the solid content can reach 40%.
7. The flow rate is proportional to the rotation speed. The flow rate can be adjusted with the help of the speed regulator.8. It can realize constant voltage control and anti-dry operation protection.
